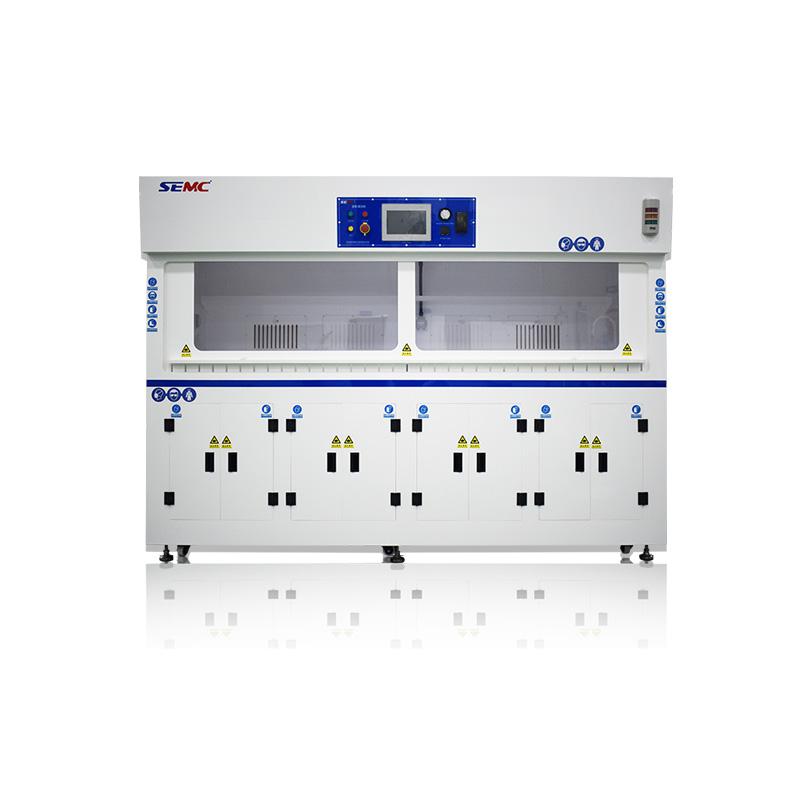

Semi-Automatic Developing Cleaning Machine
SEMCTCEH specializes in the integrated development, production and sales of wet process equipment.
Semi-Automatic Developing Cleaning Machine
| Item | Specification |
| Applicable Workpiece | 4~8 inch wafer cleaning |
| Batch Capacity | 25 pcs/batch for 8 inch |
| Process Flow | QDR ← Developing → QDR ← Developing → QDR |
| Process Tank Functions | Circulation filtration + Heating/Cooling + Up-down oscillation + Wafer rolling |
| Main Materials | Metal frame + PVC/PPW shell plate, tank made of PPN/PVDF material |
| Transfer Method | Manual transfer |
| Cycle Time | Adjustable from 5~15 minutes according to process requirements |
